CXH-1D SINGLE-DECK NAVIGATION SIGNAL LIGHT

CXH-1D

The scope of application

Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.

Products characteristic

  1. It is convenient to install and replace the bulb, and there are automatic weepholes in the bottom.
  2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance.
  3. The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor and etc.

Adopt standard

  1. Conform toTHE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS  .
  2. Conform to the standard of marine electricsignal light’s technical condition GB/T 3028-1995.

Production authentication

Approval by CCS(China Classification Society), certificate number 00518Q30797R1M.



Voltage24V/110V/220V
Power60W/65W
Lamp holderE27
Protection classIP55
Cable outside diameterΦ12-Φ16
IMPA CodeNameModelVisibilityLevel arcColor
370442Starboard lightCXH1-1D3n.m112.5°Green

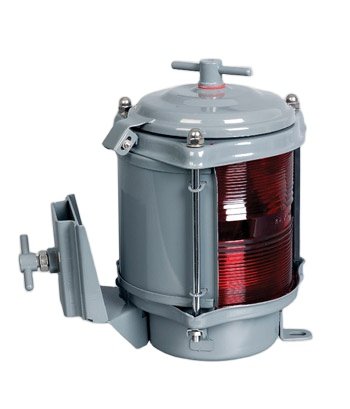

370443Port lightCXH2-1D3n.m112.5°Red

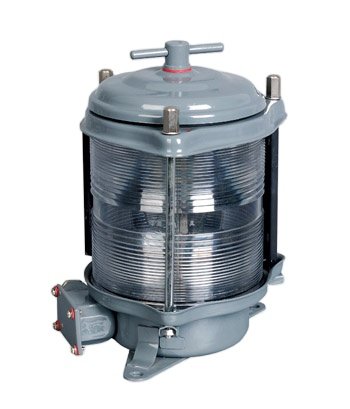

370441Masthead lightCXH3-1D6n.m225°White

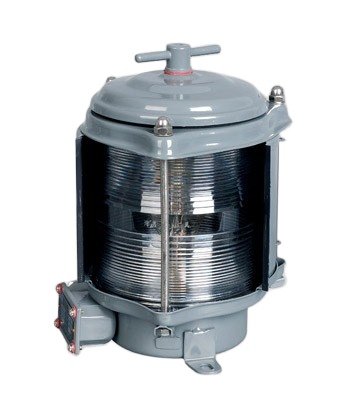

370444Stern lightCXH4-1D3n.m135°White/Yellow

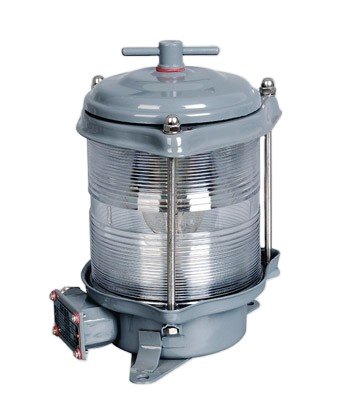

370446-370448All-round lightCXH6-1D3n.m360°Red/Green/White
