Does your cabin light appear dim and yellowish? Has the lampshade been aged and fragile? If you’re still using the original plastic cover plate that you installed years ago, it might be time to consider an upgrade. High-quality marine light diffuser is not only a beautiful choice, but also a necessary equipment to ensure the safety and comfort of maritime navigation.
Standard household plastics will soon fail in the harsh marine environment: they are prone to fracture during continuous vibration, gradually turn yellow under ultraviolet irradiation, and may even become a safety hazard. This article will discuss why it is necessary to upgrade marine fluorescent light diffusers and how to select suitable materials.
What is Marine Light Diffuser?
Marine light diffuser is mainly used to cover the LED or marine fluorescent light source on the ship. Different from the ordinary building lampshade, marine light diffuser must have excellent weather resistance and optical properties.
There are two kinds of marine light diffusers – PC light diffusers and Acrylic light diffusers. These materials are treated with special formulations to resist high-intensity ultraviolet (UV) radiation and prevent the lampshade from turning yellow or brittle under long-term sea exposure.
Main Benefits of Marine Light Diffuser:
- Anti-vibration: Withstand the continuous roar of the engine and the beating of the waves.
- UV Stability: Resist the degradation caused by the reflection of sunlight on the water surface.
- Moisture Protection: Seal the electrical components of the lamp to prevent salt fog and moisture intrusion.
- Reduce Glare: Soften high-intensity LED or fluorescent lights to prevent eye strain in narrow cabin spaces.
Why Do You Need A Dedicated Marine Light Diffuser?
Many people may wonder: Can’t I use the ordinary acrylic board in the hardware store directly? The short answer is: No. Standard plastics are usually made of styrene, which can quickly become brittle and yellow when exposed to the marine environment.
1. Vibration Factors
The ship is always in motion. The standard brittle plastic lens can cause stress cracks around the mounting screws or can be broken directly in bad weather. The suitable marine soft light diffuser is made of high impact material that is designed for the harsh marine environment.
2. Ultraviolet and Salt Spray Corrosion
Salty air accelerates the oxidation of many materials. In addition, UV radiation on water is usually more intense. Inferior light will turn muddy brown within 1 year that significantly reduce the lumen output of lamps and make your cabin feel dirty and dark.
3. Fire Safety
Ordinary light diffuser often fail to pass stringent flame retardant tests (such as UL94 V-0 rating). Ship fire is fatal. The special marine light diffuser is made of flame retardant material, which can self-extinguish in extreme cases and prevent the spread of fire. It meets the safety standards of the International Maritime Organization.
Marine Light Diffuser Material: Which is the Most Suitable for Your Ship?
Material is the most important specification when choosing and purchasing marine light diffuser for replacement. The following is a comparison table to help you make a decision.
| Comparison Table of Marine Light Diffuser Material | ||||
|---|---|---|---|---|
| Material | Impact Resistance | UV Stability | Cost | Best Use Case |
| Polycarbonate (Lexan) | Extremely High (Virtually Unbreakable) | High (if UV treated) | High | Engine rooms, exterior lights, high-traffic cabins |

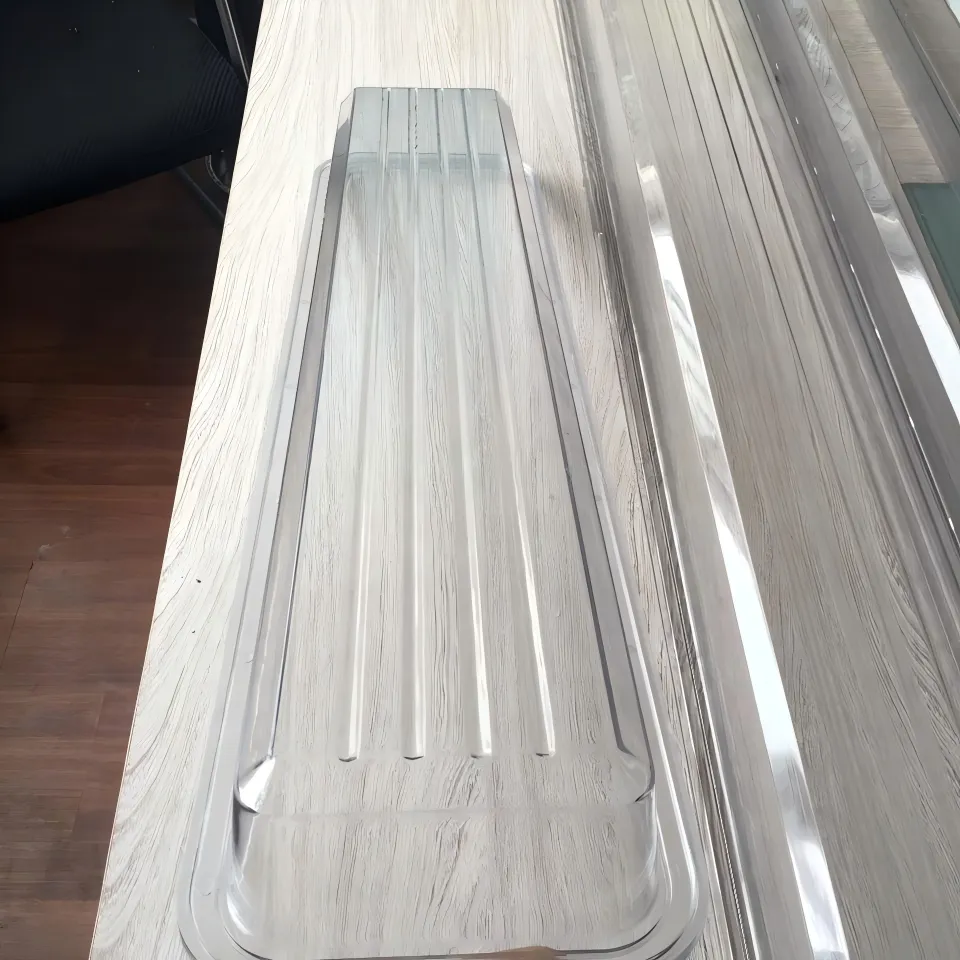

| Impact-Modified Acrylic | High | Excellent (Best clarity) | Medium | Interior salon, galley, fluorescent covers |
| Standard Styrene | Low (Very Brittle) | Poor (Yellows quickly) | Low | Avoid for marine use |
Bozhou Marine suggests that in order to obtain the best service life, it is necessary to find UV-Stabilized Polycarbonate when choosing a marine light diffuser. It provides glass-like clarity and steel-like strength.
How to Install the Marine Light Diffuser?
Installing a new marine light diffuser is usually a DIY work. Follow these steps to ensure a waterproof and sound-free fit.
Tools Required:
- Tape (accurate to 1/16 inches or millimeters)
- Fine-toothed plastic saw (or hook knife for acrylic)
- Sandpaper (for polishing edges)
- Silicone Sealant (for external lamps, optional)
Step-by-step:
- Remove the Old Lens: Because the old plastic may break, please wear goggles carefully.

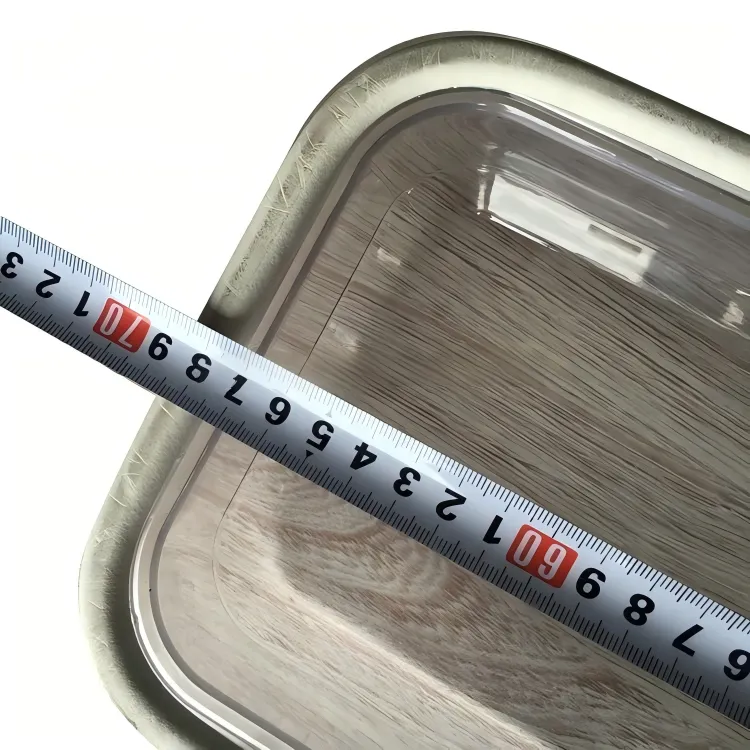

- Measure the Opening: If the old lens has been broken, measure the light transmission opening of the lamp and the groove where the lens is located.
- Consider Thermal Expansion: Plastics will expand when heated. Subtract about 1/8 of an inch (about 3 mm) from your measurements to allow marine light diffuser to expand without bending or cracking.
- Cut Size: If you buy a sheet, cut slowly to avoid melting the plastic.
- Install Damping Pad: In order to prevent clicking, place small rubber strips or foam strips on the edge of the contact between the soft plate and the metal shell.
Enhance Cabin Environment by Installing A Marine Light Diffuser
Lighting determines the atmosphere of the ship. By upgrading to an egg white or milky white marine light diffuser, you can get a modern, high-end look that mimics the lighting effects of luxury hotels. These light diffusers absorb slightly more light than the transparent prism plate, but in exchange for a beautiful, soft halo, eliminating all the dazzling shadows. This is particularly effective in the sleeping area and kitchen.
Where to Buy Marine-Grade Plastics for Marine Light Diffuser?
Although you can find general plastics in home decoration stores, you should consult a professional supplier for a real ship fluorescent light diffuser. Ship supplies stores or professional plastic processors can usually cut the plate into the specifications you need exactly.
Key Features to Check on the Product Label:
- UV Stabilized or UV Resistant
- High Impact
- Non-Yellowing Warranty
Common Light Problems of Marine Light Diffuser
This is very common on ships, usually caused by engine vibration. If the marine light diffuser is slightly loose, please apply a small amount of transparent silicone to the inner lip of the lamp, or use a foam seal with adhesive to form a buffer layer to fill the gap.
The frosted film can reduce glare, but it cannot provide physical protection for the interior of the bulb or luminaire. The marine environment requires rigid marine light diffusers to protect electrical components from salt fog, moisture and accidental shocks.
Do not use abrasive scrubs or ammonia-containing cleaning agents (such as standard glass water) on polycarbonate or acrylic. They can cause plastic to atomize or create crazing (tiny cracks). Please use ultra-fine fiber cloth with mild soapy water to wipe.
Abnormal. This indicates that the sealing of the lamp has failed. Long-term water accumulation will corrode the circuit contacts in the flexible hood of marine fluorescent lamps. Please check whether the rubber washer is aging and ensure that the interior of the luminaire is completely dry before re-installing the light diffuser. If necessary, use marine-grade sealant for reinforcement.
The original prism plate may not be able to effectively diffuse the high-intensity direct light of the LED, resulting in pixelated light spots. When refitting LEDs, it is recommended to replace the old transparent prism board with a high-diffusivity milky white board (High-Diffusion Milky Lens), or choose an LED lamp with a scrub cover to obtain uniform soft light.
Conclusion
Your ship deserves better accessories than those fragile, yellowing lampshades. Upgrading the marine light diffuser is one of the most cost-effective ways to improve the internal texture of the cabin. It can not only optimize the lighting effect and improve safety, but also bring a more modern visual experience to the cabin.
Whether you need to customize the soft hood of marine fluorescent lights, or want to upgrade to a polycarbonate plate suitable for LED light sources, choosing a durable and UV-resistant material will ensure that your lighting system remains reliable for many years of navigation.
