CXH-4P YACHT LED NAVIGATION SIGNAL LIGHT

CXH-4P

The scope of application

Fit for the ships with the length less than 12m as lamp signal when night navigation.

Products characteristic

  1. The shell is made of high-strength engineering plastic PA+GF injection, the lampshade adopts injection of PC, the lens hood adopt the high quality brass alloy.
  2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
  3. The signal lights choice the special signal bulb which conform to the ship norm, it can replace bulb when open the up cover.
  4. The signal lights can work normally under the temperature -30℃ ~55℃ .

Adopt standard

  1. Conform toTHE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972and GRADE ENTRY NORMS FOR STEEL SHIPS .
  2. Conform to the international standard IEC60598-1-2008.
  3. Conform to the standard of marine electricsignal light’s technical condition GB/T 3028-1995.
Voltage12V-24V
Power5W LED
Protection classIP66
NameModelVisibilityLevel arcShell Color

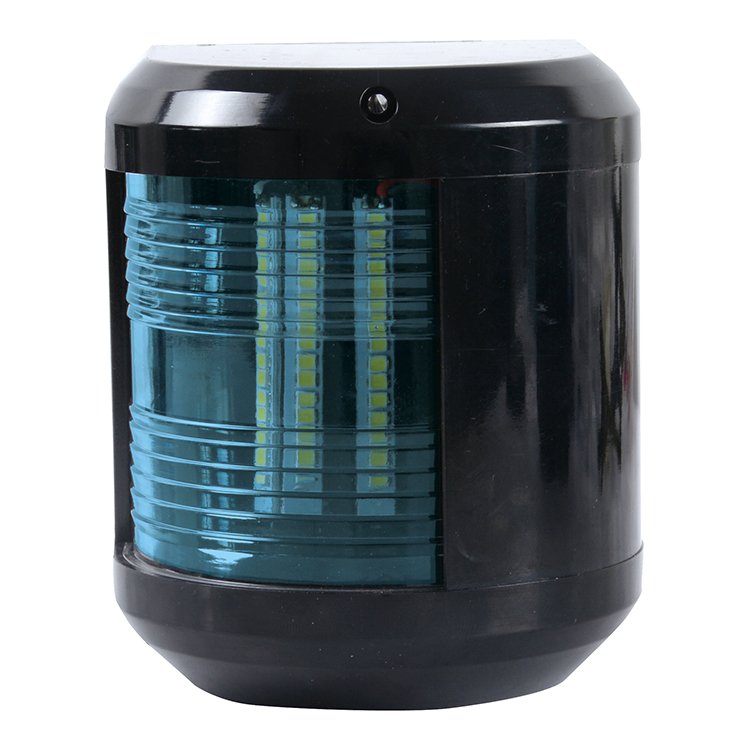

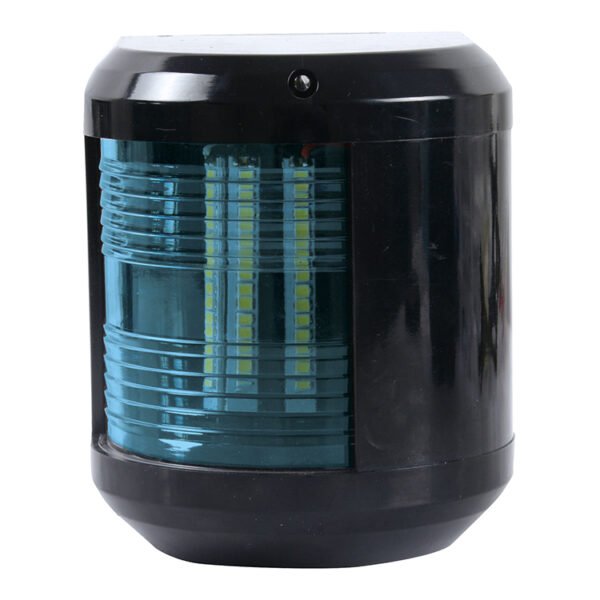

Green Starboard lightCXH1-2YB/2YW1n.m112.5°Black/White

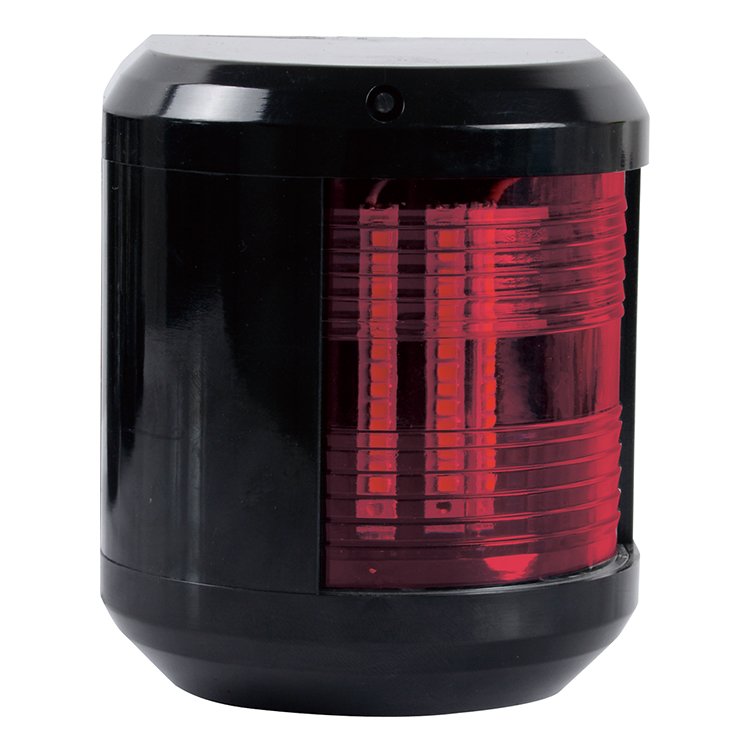

Red Port lightCXH2-2YB/2YW1n.m112.5°Black/White

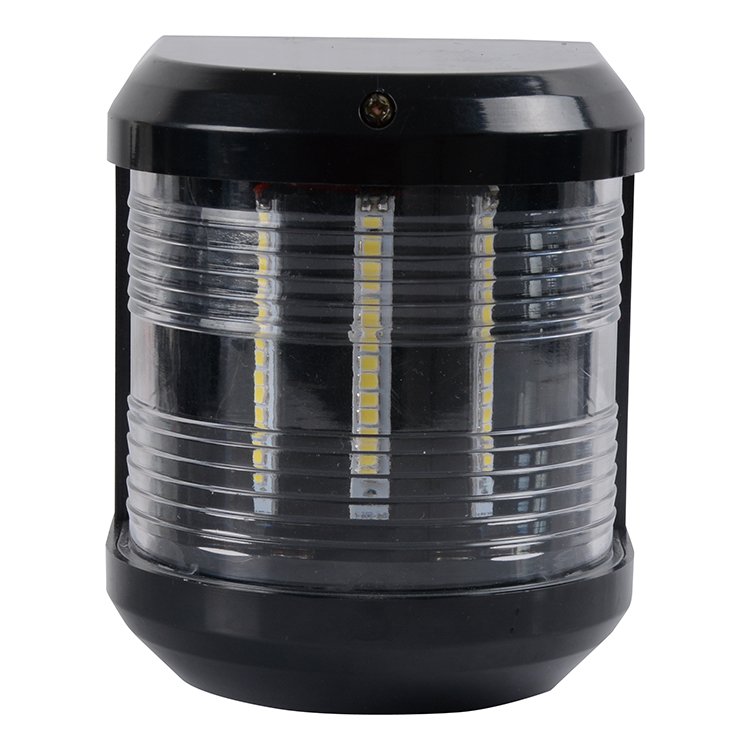

Masthead lightCXH3-2YB/2YW2n.m225°Black/White

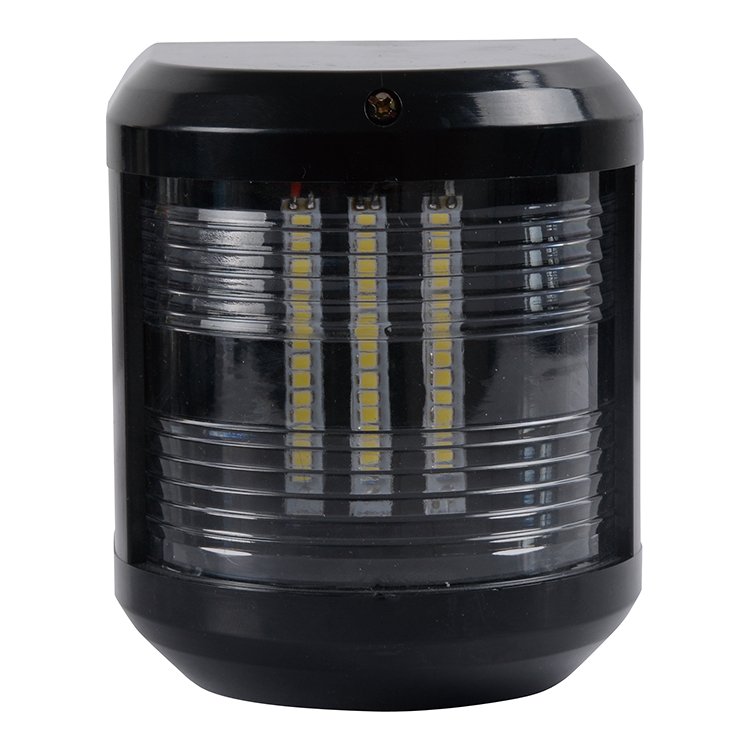

Stern lightCXH4-2YB/2YW2n.m135°Black/White
