CXD8 DAYLIGHT SIGNAL LIGHT

CXD8

The scope of application

Applied to daylight signal communication between the ships.

Main technical parameter

◆ Voltage/Power: 24V/60W ◆ Light intensity: 60,000cd

◆ Light pillar angle: 6° ◆ Telescope magnification: 4

◆ Telescope visual angle: 3° ◆ Visibility: 2n.m

◆ Lamp holder: G6.35 ◆ Plug: Four pin 25M-4A

◆ Protection class: IP44 ◆ Cable outside diameter: Φ9.5

Products characteristic

  1. With good quality cast aluminum shell and mechanical flash device.
  2. Light, convenient to operate and bring.

Production authentication

  1. Approval by CCS(China Classification Society), certificate number ZJ20P4039-8.
  2. Conform toMS.C.95(72) DECISION   and JISF8456-1996.
  3. Patent No.:ZL 2014 3 0497341.5.
  4. By the American Bureau of Shipping “ABS” certification, certificatenumber 18-SQ1799333-PDA

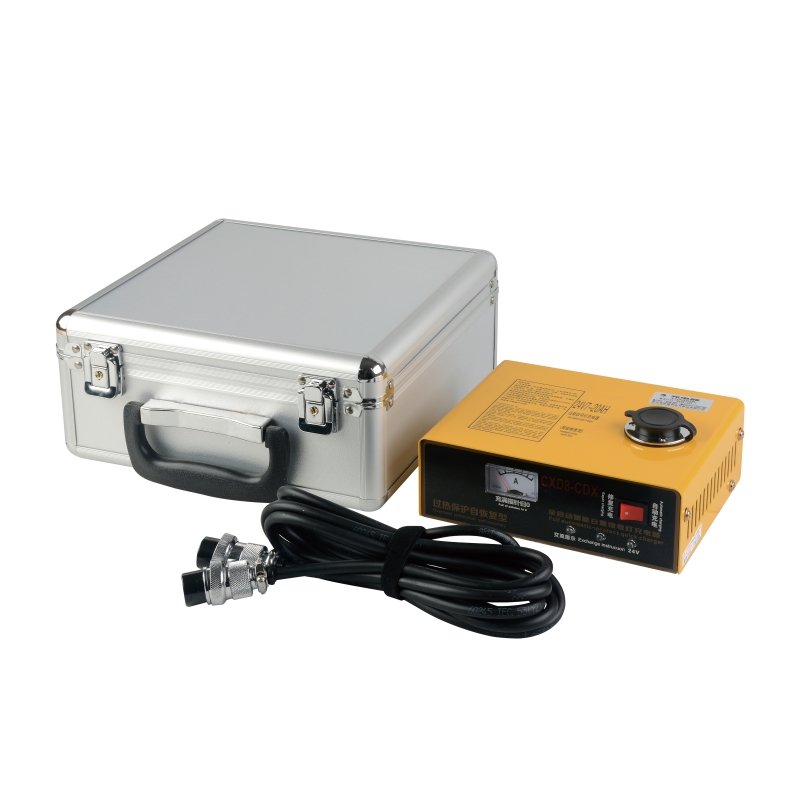

Controller CXD8-CDX

◆ Input: AC110V/60Hz. AC220V/50Hz/60Hz

◆ Output: DC24V,DC12V

◆ Capacity: 7Ah

◆ Temperature: -25℃ ~45℃

◆ Socket: Four pin 25M-4B Three pin 25M-3B

◆ Protection class: IP20

◆ Mark the voltage and frequency when order

ModelCXD8
Voltage24V
Wattage60W
Lamp holderG6.35
Light intensity60cd
Beam Angle
Telescope visual angle
Visibility2N.M
Plug4 Pin 25M-4A
Protection classIP44
Cable outside diameterΦ9.5
NameController
Input voltageAC 110V/60Hz / 220V/50Hz/60Hz
Output voltageDC 12V/24V
Capacity7Ah
Operating temperature-25℃ ~ 45℃
Socket4 Pole 25M-4B / 3 Pole 25M-4B
Protection classIP20
