INCANDESCENT EXPLOSION-PROOF LIGHT

CFD13-L

Aluminum LED 50W Explosion Proof Light | CFD13-L
Item No.: CFD13-L

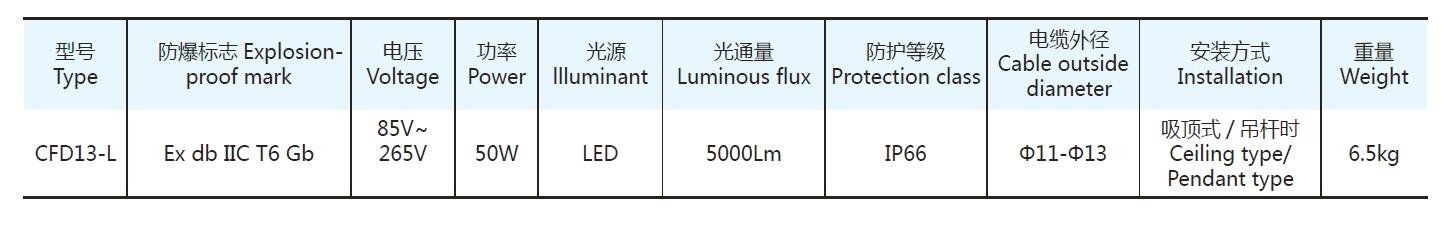

Application:  For Zone I and Zone II, especially for places hydric gas and air admixure, ethyne and air admixure,
Standard: GB3836-2000, GB12045, EN50014, EN50018, EN60079
Material: Aluminum
Protection Class: IP66
Lamp Holder:  LED  |  Cable:  Φ11- Φ13

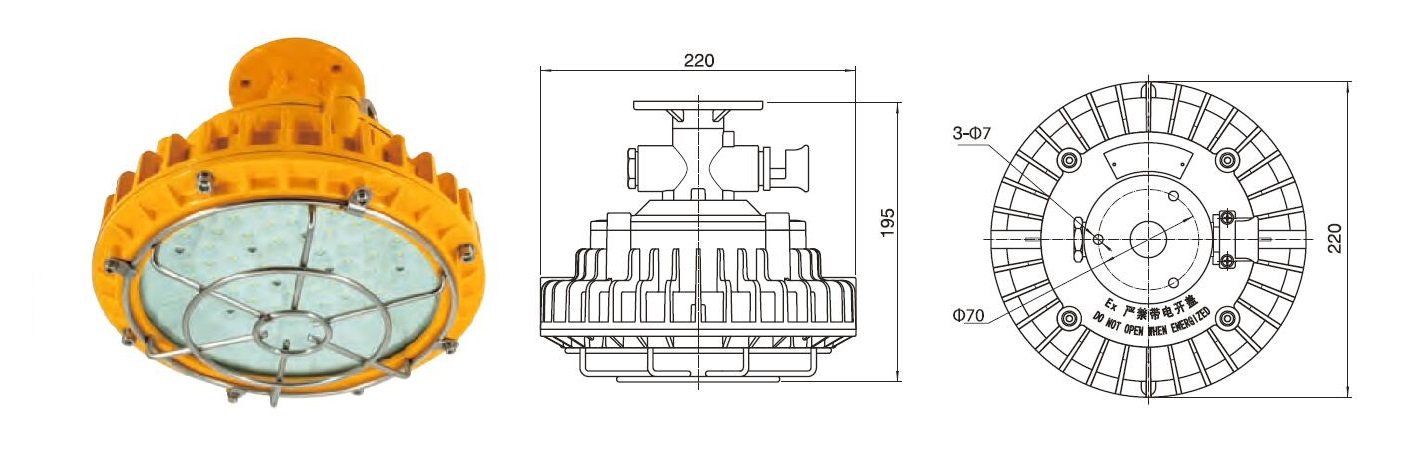

Size: Φ220 x L195 mm  |  Weight: 6.5 KGS

Contact Us
6IAF
4MED
5ATEX
3BV
2CCS
1ABS
7CNAS
RoHS logo
CE logo

The scope of application

The light used for zone 1 ,zone 2 dangerous place, explosive air mixture:IIA, IIB, IIC, as the illumination of platform boundary light and vessel deck.

Products characteristic

  1. The shell adopt good quality cast brass alloy material, with spraying plastics on surface.
  2. The outside tighten screw is stainless steel material.
  3. The lampshade has the function of temperature resistance shake up.
  4. The ilumination adopt LED, the working life can get up to 50000 hours.
  5. The LED starter has stabled components, to assure that the circuit has a long life time, and it has the protection for the short circuit and over load, to assure that the LED light work for long term.
  6. Approval by ATEX-B, certificatenumber TAZJ23091450681.

Products FAQ

  • What are the key features of the Incandescent Explosion-Proof Light CFD13-L?The CFD13-L is designed with a rugged explosion-proof housing that ensures safety in hazardous environments. It uses incandescent technology to provide reliable and consistent illumination. Its robust construction, featuring corrosion-resistant materials, makes it suitable for marine and industrial applications.
  • Is the CFD13-L suitable for use in hazardous locations?Yes, the CFD13-L is specifically engineered for use in environments where explosive gases or dust may be present. Its explosion-proof design prevents internal sparks or heat from igniting external flammable substances, making it ideal for oil rigs, chemical plants, and other hazardous areas.
  • How does the CFD13-L compare to LED explosion-proof lights?The CFD13-L uses incandescent technology, which offers a warm light output and is often preferred for specific applications. However, it may not be as energy-efficient as LED options, which provide longer lifespan and lower energy consumption. The choice between incandescent and LED will depend on specific lighting needs and energy considerations.
  • What are the installation requirements for the CFD13-L Explosion-Proof Light?The CFD13-L is designed for easy installation with a secure mounting system. It is recommended that installation be performed by a qualified professional, particularly in hazardous environments, to ensure compliance with safety standards and optimal performance.
  • Can the CFD13-L be used in both indoor and outdoor settings?Yes, the CFD13-L is versatile and suitable for both indoor and outdoor use. Its durable construction and explosion-proof certification make it suitable for various applications, including marine vessels, industrial facilities, and outdoor installations exposed to harsh weather conditions.
